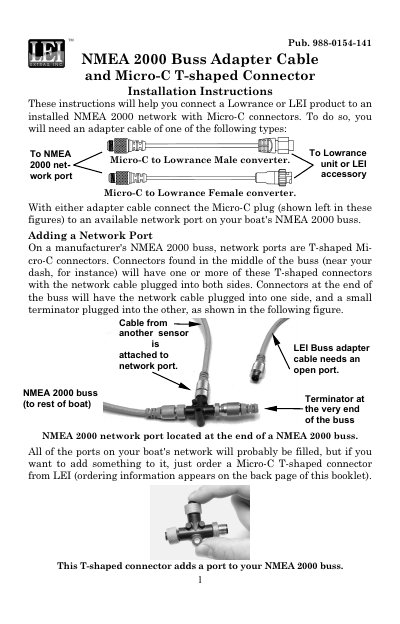

These instructions provide installation guidance for connecting a Lowrance or LEI product to an installed NMEA 2000 network with Micro-C connectors. By using an adapter cable, users can connect the Micro-C plug to the boat's NMEA 2000 bus.
This document provides installation instructions for the LEI NMEA 2000 Buss Adapter Cable, which connects Lowrance or LEI products to a boat's existing NMEA 2000 network. The guide explains how to identify available ports on the network buss and distinguishes between T-shaped connectors in the middle of the line and end-of-line terminators.
This adapter cable connects a Lowrance or LEI product to an installed NMEA 2000 network.
Separate the network cable from one end of the attached T-shaped connectors and attach your new T-shaped connector between them.
