The NTF2955 is a P-channel MOSFET with a maximum rating of −60 V and −2.6 A. It features a TMOS7 design for low RDS(on) and withstands high energy in avalanche and commutation modes. The device is suitable for use in power supplies, PWM motor control, converters, and power management applications.

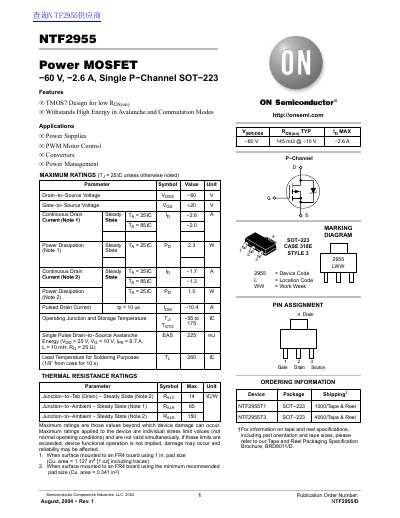

The document describes the NTF2955, a P-Channel Power MOSFET designed for applications such as power supplies, PWM motor control, and converters. Key features include TMOS design for low Rds(on) and high energy withstand capability in avalanche and commutation modes.
Technical specifications provided cover maximum ratings, electrical characteristics including off-state breakdown voltage and on-resistance, capacitances, switching times, and diode forward voltage. The datasheet also includes typical performance curves and package dimensions for the SOT-223 (TO-261) case.
| Power Dissipation (Ta = 25°C) | 2.3 W |
|---|---|
| Package Type | SOT-223 |
| Operating Junction Temperature Range | -55 to +150°C |
It has a steady-state power dissipation rating of 2.3 W at an ambient temperature of 25°C.
