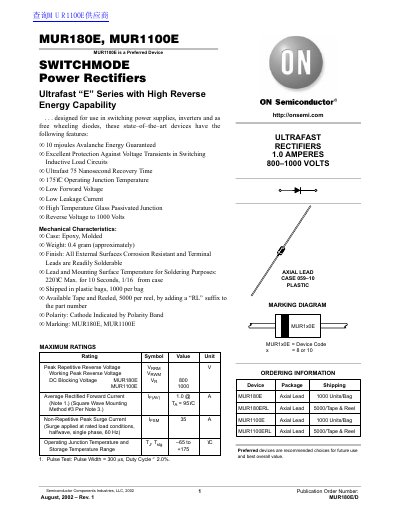

This data sheet is MUR180E/D data sheet, which contains the specifications and features of the product
This document provides technical specifications and characteristics for the MUR180E and MUR1100E series of Ultrafast "E" Series Power Rectifiers. These devices are designed for use in switching power supplies, inverters, and as free-wheeling diodes in inductive load circuits.
Key features include a guaranteed 10 millijoules avalanche energy capability, excellent protection against voltage transients, and an ultrafast 75 nanosecond recovery time. The rectifiers operate with a junction temperature up to 175°C and are available in axial lead packages.
| Peak Repetitive Reverse Voltage (MUR180E) | 800 V |
|---|---|
| Working Peak Reverse Voltage (MUR1100E) | 1000 V |
| Non-Repetitive Peak Surge Current | 35 A |
| Operating Junction Temperature Range | -65 to +175 °C |
| Controlled Avalanche Energy | 10 mJ |
The devices can operate at a junction temperature of up to 175°C.
The maximum temperature for soldering purposes is 220°C for 10 seconds.
The devices are shipped in plastic bags containing 1000 units per bag.
