This document introduces the features and characteristics of the MMSZ2V4ET1 series Zener Voltage Regulators, including 500 mW rating, FR-4 or FR-5 board, wide Zener reverse voltage range, optimized automatic board assembly, small package size and high density applications.

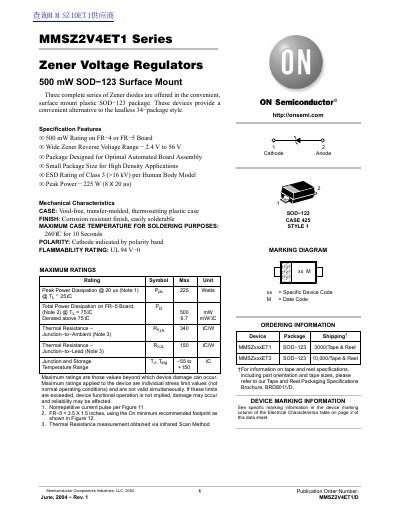

This document provides a technical overview of the MMSZ2V4ET1 Series Zener Voltage Regulators, which are offered in a convenient, surface-mount plastic SOD-123 package. These devices serve as an alternative to leadless packages and feature a wide reverse voltage range from 2.4 V to 56 V.
| Peak Power Dissipation @ 20 us | 225 W |
|---|---|
| Thermal Resistance Junction-to-Ambient | 340 °C/W |
| Junction and Storage Temperature Range | -55 to +150 °C |
| ESD Rating per Human Body Model | >16 kV (Class 3) |
The devices have a peak power dissipation rating of 500 mW when mounted on an FR-4 or FR-5 board.
The case can withstand a maximum temperature of 260°C for up to 10 seconds during soldering.
The type numbers shown have a standard tolerance of +5% on the nominal Zener Voltage.
