This data sheet mainly introduces the features and characteristics of the MMSZ2V4ET1 series of diode products, including rated power, maximum power, voltage range, etc.

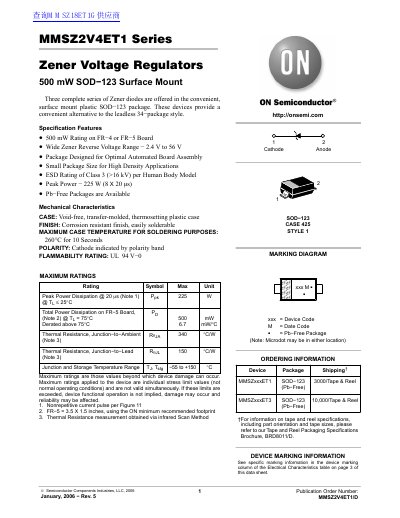

This document provides technical specifications for the MMSZ2V4ET1 Series Zener Voltage Regulators, which are offered in a surface mount plastic SOD-123 package. These devices provide a convenient alternative to leadless packages and feature a wide Zener reverse voltage range from 2.4 V to 56 V.
| Peak Power Dissipation | 225 W (8 x 20 us) |
|---|---|
| Total Power Dissipation | 500 mW |
| Thermal Resistance Junction-to-Ambient | 340 °C/W |
| Junction and Storage Temperature Range | -55 to +150 °C |
| ESD Rating | Class 3 (>16 kV) |
| Package Type | SOD-123 |
The wide Zener reverse voltage range is from 2.4 V to 56 V.
Yes, Pb-Free packages are available for this series.
The maximum case temperature for soldering purposes is 260°C for 10 seconds.
