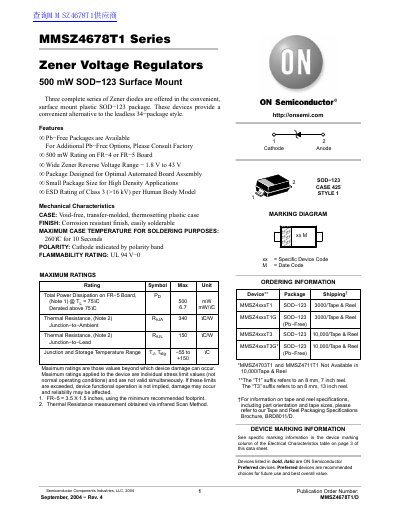

This document introduces the features and characteristics of the MMSZ4678T1 series Zener diodes. These diodes are available in a convenient, surface mount plastic SOD−123 package, providing an alternative to the leadless 34-pin package style.
The document describes the MMSZ4678T1 Series Zener Voltage Regulators, which are offered in convenient, surface mount plastic SOD-123 packages. These devices serve as an alternative to leadless 34-package styles and provide a wide Zener reverse voltage range from 1.8 V to 43 V. The series includes Pb-free package options and is designed for optimal automated board assembly with a small package size suitable for high-density applications.
| Total Power Dissipation | 500 mW |
|---|---|
| Zener Reverse Voltage Range | 1.8 V to 43 V |
| Package Type | SOD-123 |
| Junction and Storage Temperature Range | -55 to +150 °C |
| Thermal Resistance Junction-to-Ambient | 340 °C/W |
The devices have a 500 mW rating when used on an FR-5 board.
The maximum case temperature for soldering purposes is 260°C for 10 seconds.
The junction-to-ambient thermal resistance is 340 °C/W.
