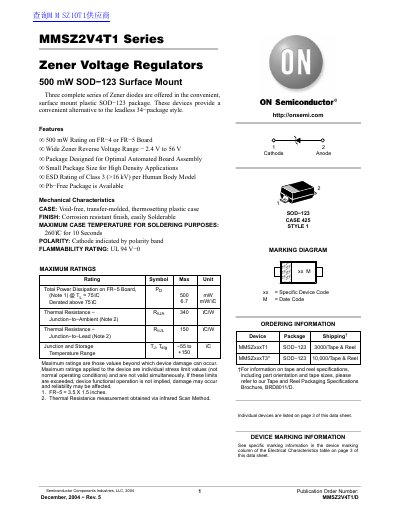

This datasheet provides the specification information of MMSZ2V4T1 series Zener voltage regulators. The series products provide 500mW power and SOD-123 surface mount packaging. They have a wide range of reverse voltages and a compact packaging size.
This document describes the MMSZ2V4T1 Series of Zener voltage regulators offered by ON Semiconductor. These devices are available in a surface mount plastic SOD-123 package and provide a convenient alternative to leadless packages. The series features a wide Zener reverse voltage range from 2.4 V to 56 V and is designed for optimal automated board assembly.
| Power Dissipation | 500 mW |
|---|---|
| Zener Reverse Voltage Range | 2.4 V to 56 V |
| Package Type | SOD-123 |
| ESD Rating | Class 3 (>16 kV) |
| Thermal Resistance (Junction-to-Ambient) | 340 °C/W |
The devices have a 500 mW rating on FR-4 or FR-5 boards.
Yes, a Pb-Free package is available for this series.
The maximum case temperature for soldering purposes is 260°C for 10 seconds.
