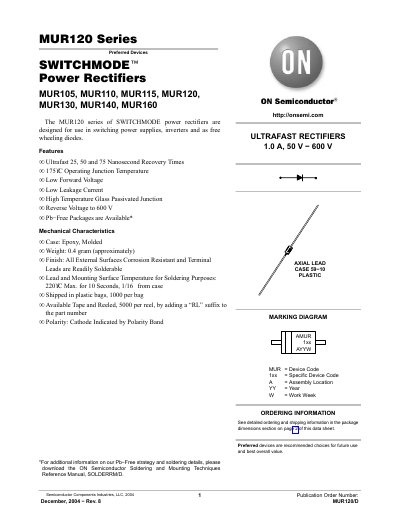

This document is a MUR120 series of SWITCHMODE power rectifiers datasheet, including product features, characteristics, package dimensions, pin definitions, application circuits, etc.
The MUR120 series of SWITCHMODE power rectifiers are designed for use in switching power supplies, inverters, and as free-wheeling diodes. The series includes devices with reverse voltages ranging from 50V to 600V and features ultrafast recovery times of 25, 50, and 75 nanoseconds.
| Operating Junction Temperature | -65 to +175 °C |
|---|
The series features ultrafast recovery times of 25, 50, and 75 nanoseconds.
The maximum operating junction temperature is +175 °C.
The maximum reverse voltage rating is 600 V.
