The document describes an N-channel SOT-223 power MOSFET designed for low voltage, high speed switching applications in power supplies, converters, power motor controls, and bridge circuits. The document provides maximum ratings, operating conditions, thermal resistance, and other parameters.

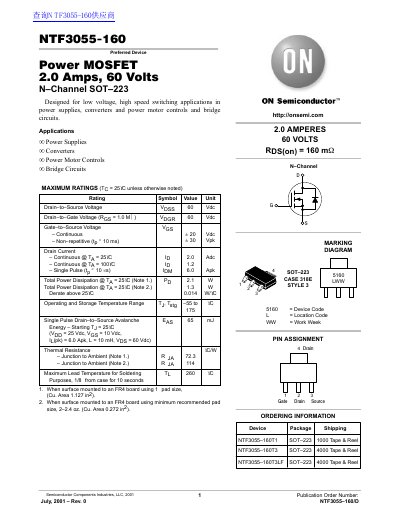

The NTF3055-160 is a preferred device Power MOSFET designed for low voltage, high speed switching applications in power supplies, converters, power motor controls, and bridge circuits. It features a continuous drain current of 2.0 Amps and a drain-to-source voltage rating of 60 Volts.
The document details maximum ratings, electrical characteristics, dynamic characteristics, and switching parameters. It also includes graphical data on on-resistance variation, capacitance, and safe operating areas, along with package dimensions for the SOT-223 (TO-261) case.
| Drain Current (Continuous) | 2.0 A |
|---|---|
| Drain-to-Source Voltage | 60 V |
| On-Resistance (RDS(on)) | 160 mΩ |
| Package Type | SOT-223 |
| Operating Temperature Range | -55 to 175 °C |
| Total Power Dissipation | 24 W |
The continuous drain current is 2.0 Amps at 25°C.
The static drain-to-source on-resistance is 160 mΩ.
