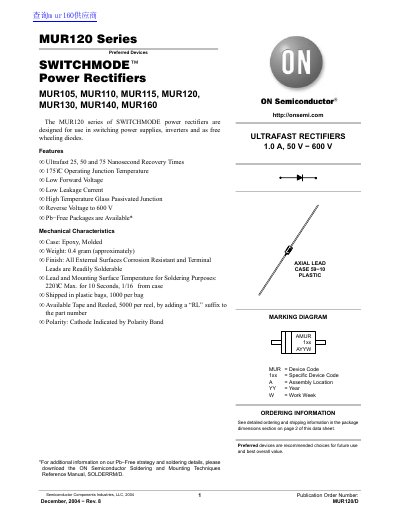

This datasheet provides detailed information on the MUR120 series of switching mode power rectifiers, including features, mechanical characteristics, ordering information, and marking diagram.
The document describes the MUR120 series of SWITCHMODE power rectifiers designed for use in switching power supplies, inverters, and as free-wheeling diodes. The series includes models with reverse voltages ranging from 50V to 600V and features ultrafast recovery times of 25, 50, and 75 nanoseconds.
| Operating Junction Temperature Range | -65 to +175 °C |
|---|---|
| Ultrafast Recovery Time (trr) | 25, 50 and 75 Nanosecond |
| Package Type | Axial Lead CASE 59-10 PLASTIC |
The devices feature ultrafast recovery times of 25, 50, and 75 nanoseconds.
The maximum operating junction temperature is +175 °C.
