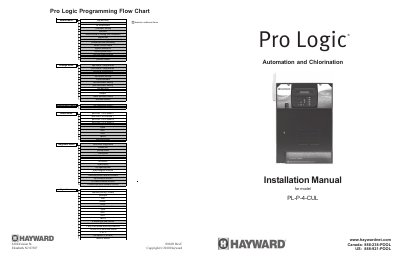

Hayward Pro Logic PL-P-4-CUL Installation Manual

About this manual

This document serves as an installation manual for the Hayward Pro Logic PL-P-4-CUL automated control system designed for swimming pools and spas. It provides essential safety instructions regarding electrical grounding, bonding, and water temperature hazards before beginning the setup process.

The guide details step-by-step procedures for preparing general water chemistry, mounting the control center, configuring pool/spa settings, and installing optional components such as remote controls and valve actuators. It also includes specific sections on plumbing configurations, electrical main service wiring, and system startup verification.

What's inside

• Introduction
• Safety Instructions
• Mounting Pro Logic Control Center
• Plumbing Pool/Spa Configuration
• Electrical Main Service Wiring
• Configuration Menu
• System Startup and Checkout
• Service Mode

Frequently asked questions

What is the warranty period for Hayward Pro Logic products in private residential pools in the US?

Hayward/Goldline warrants its Pro Logic pool automation products to be free of defects for a period of three (3) years.

How do you enter Service Mode on the unit?

To enter service mode, push the SERVICE button once on the main unit keypad.

What is the maximum water temperature warning limit mentioned in the safety instructions?

The manual warns that water in excess of 100 degrees Fahrenheit may be hazardous to your health.
