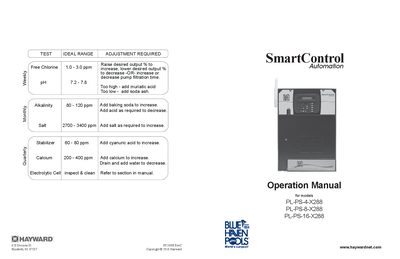

This document describes the operating instructions and safety precautions for Hayward PL-PS-4-X288, PL-PS-8-X288 and PL-PS-16-X288 SmartControl Automation.
The SmartControl is a multifunction pool controller used to fully manage pool and spa systems. It can control pumps, valves, lighting, heaters, and chlorination. The system supports both manual and automatic (programmed) operation modes.
| Controlled Equipment (PS-4) | up to 4 high voltage pieces of equipment |
|---|---|
| Controlled Equipment (PS-8) | up to 8 high voltage pieces of equipment |
| Controlled Equipment (PS-16) | up to 16 high voltage pieces of equipment |
| Valve Actuators (PS-4) | up to 4 automatic valve actuators |
| Valve Actuators (PS-8) | up to 8 automatic valve actuators |
| Valve Actuators (PS-16) | up to 16 automatic valve actuators |
| Conventional Heaters | 2 plus a solar heater |
The ideal range for Free Chlorine is 1.0-3.0 ppm.
The ideal pH range is 7.2-7.8.
The ideal Alkalinity range is 80-120 ppm.
The ideal Salt range is 2700 - 3400 ppm.
