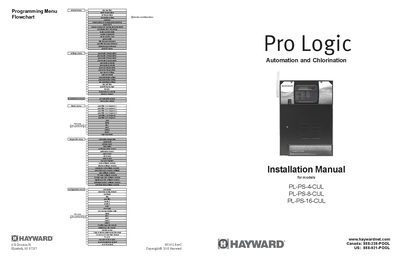

This document is an automation and chlorination installation manual, covering PL-PS-4-CUL, PL-PS-8-CUL, PL-PS-16-CUL model programming menu flowcharts, and detailed introductions to product features.
This manual provides installation instructions for the Hayward Pro Logic automation system, specifically models PL-PS-4-CUL, PL-PS-8-CUL, and PL-PS-16-CUL. It covers essential steps including preparing pool/spa water, mounting equipment, plumbing connections, and electrical wiring. The document details the configuration of the control center, expansion units, and various optional modules such as chlorination functions, temperature sensors, and remote displays.
| Warranty Period (Residential US/Canada) | three (3) years |
|---|---|
| Warranty Period (Commercial/International) | one (1) year |
| Grounding Conductor Size | continuous copper wire equivalent in size to the circuit conductors |
| Bonding Conductor Size | not smaller than 8 AWG US /6 AWG Canada |
Hayward/Goldline warrants its Pro Logic and E-Command pool automation products for a period of three (3) years.
The warranty period is one (1) year for commercial swimming pools and pools outside of the US and Canada.
An insulated or bare copper conductor not smaller than 8 AWG US /6 AWG Canada is required.
