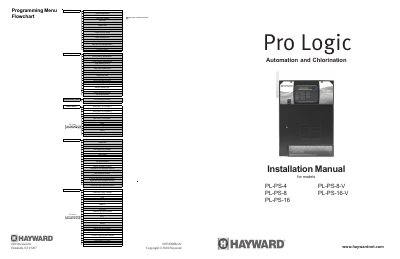

HAYWARD Installation Manual for models PL-PS-4 PL-PS-8-V PL-PS-8 PL-PS-16-V PL-PS-16

About this manual

The document serves as an installation guide for the Hayward Pro Logic series of pool automation and chlorination controllers. It covers models including PL-PS-4, PL-PS-8-V, PL-PS-8, PL-PS-16-V, and PL-PS-16. The guide details the setup process from preparing water chemistry to mounting the control center and connecting various optional modules such as expansion units, temperature sensors, and remote displays.

What's inside

• Introduction
• Preparing General Water Chemistry
• Mounting Pro Logic Control Center
• Plumbing Configuration
• Electrical Wiring
• Configuration Menus
• Maintenance Menu
• System Startup and Checkout

Frequently asked questions

What safety precaution is required before installing the equipment?

All AC power must be disconnected during installation to ensure safety.

What is the maximum water temperature allowed for safe use?

Water in excess of 100 degrees Fahrenheit may be hazardous to your health.

How long does the warranty last for residential pools in the US?

The product is warranted for a period of three years under normal use and service.
