This is an installation manual for a water pump product, the English name is Pro Logic 092343B RevD, which supports automation and chlorination functions.

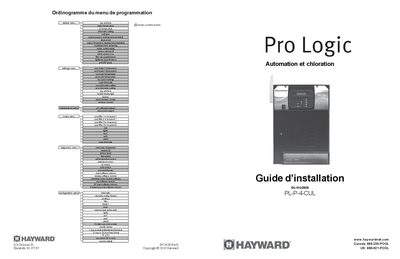

This document is an installation guide for the Hayward Pro Logic model PL-P-4-CUL, which combines pool/spa automation with chlorination control. It provides essential safety warnings regarding electrical connections, water temperature limits, and grounding requirements before installation begins.
The guide outlines the system's menu structure for programming day/time, temperatures, chemical settings (chlorinator, salt level), and diagnostic tools. It details configuration options for filters, heaters, solar panels, lights, and audio systems, as well as wireless remote setup and pH/ORP calibration procedures. This manual is written in French.
Hayward/Goldline guarantees these products are free of defects in material and workmanship for a period of three (3) years.
Hayward/Goldline guarantees these products are free of defects in material and workmanship for a period of one (1) year.
The guide specifies using a conductor with a minimum size of 8 AWG US or 6 AWG Canada.
