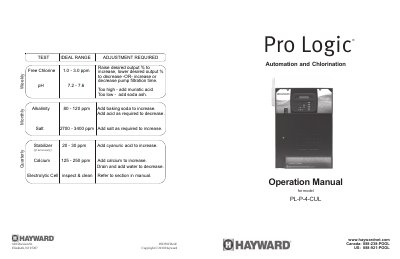

This document is the Automation and Chlorination Operation Manual for model PL-P-4-CUL Pro Logic ® 092338C RevE, which introduces how to adjust the water quality parameters.
This document is the Operation Manual for the Hayward Pro Logic PL-P-4-CUL pool automation and chlorination system. It covers system overview, block diagrams, and detailed instructions for operating the pool and spa manually or automatically. The guide explains how to program time clocks, countdown timers, and manage chlorinator settings, including saturation index and salt levels.
The desired output range for free chlorine is 1.0-3.0ppm.
The recommended pH range is 7.2-7.6.
The recommended alkalinity level is 80-120 ppm.
The recommended salt level is 2700 - 3400 ppm.
