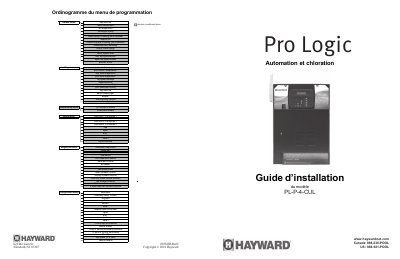

Hayward PL-P-4-CUL Pro Logic Automation and Chlorination Installation Guide

About this manual

This document is an installation guide for the Hayward Pro Logic model PL-P-4-CUL, which combines pool/spa automation with chlorination control. It includes safety warnings regarding electrical connections, water temperature limits, and grounding requirements specific to residential pools in Canada and the United States.

The guide details the programming menu structure, allowing users to configure settings such as day/time, water temperature, chlorine levels, pump speeds (high/low), and solar heating options. It also covers diagnostic features for sensors like flow switches, cell temperature, and pH/ORP levels. This manual is written in French.

What's inside

• Consignes de sécurité importantes
• Garantie limitée
• Ordinogramme du menu de programmation
• Menu maintenance
• Menu timers
• Menu diagnostic
• Menu configuration

Frequently asked questions

What is the warranty period for Hayward Pro Logic automation products in residential private pools?

Hayward/Goldline guarantees these products are free from defects in material and workmanship for a period of three (3) years.

What is the minimum wire gauge required for the common local bonding grid connection?

The guide requires an isolated or bare copper conductor with a minimum size of 8 AWG US / 6 AWG Canada.

What temperature limit is mentioned for water safety?

Water exceeding a temperature of 38 °C (100 °F) may constitute a health hazard.
