The MC74AC253/74ACT253 is a dual 4-input multiplexer with 3-state outputs. It can select two bits of data from four sources using common select inputs. The outputs may be individually switched to a high impedance state with a HIGH on the respective Output Enable (OE) inputs, allowing the outputs to interface directly with bus oriented systems. Multifunctional Capability, Noninverting 3-State Outputs, Outputs Source/Sink 24 mA, ′ACT253 Has TTL Compatible Inputs.

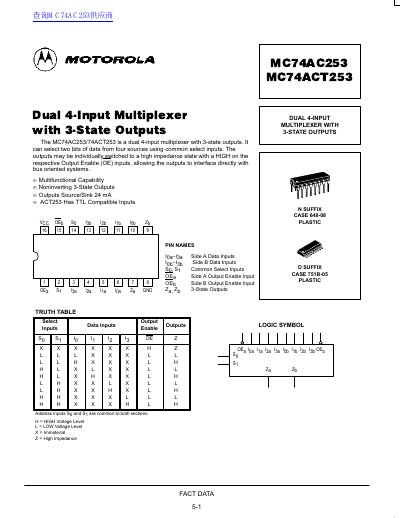

This document is a technical datasheet for the Motorola MC74AC253 and MC74ACT253 devices. These are dual 4-input multiplexers featuring noninverting 3-state outputs that can select two bits of data from four sources using common select inputs.
The datasheet provides detailed electrical specifications, including maximum ratings, recommended operating conditions, DC characteristics (input/output voltages and currents), AC characteristics (propagation delays), capacitance values, and outline dimensions for the available N SUFFIX plastic DIP and D SUFFIX plastic SOIC packages.
| Outputs Source/Sink Current | 24 mA |
|---|---|
| Storage Temperature Range | -65 to +150 °C |
| Operating Ambient Temperature (PDIP) | -40 to 85 °C |
| Maximum Input Leakage Current | +1.0 µA |
| Input Capacitance (Vcc=5.0V) | 45 pF |
The maximum DC supply voltage is +7.0 V.
The device can be stored between -65 and +150 °C.
