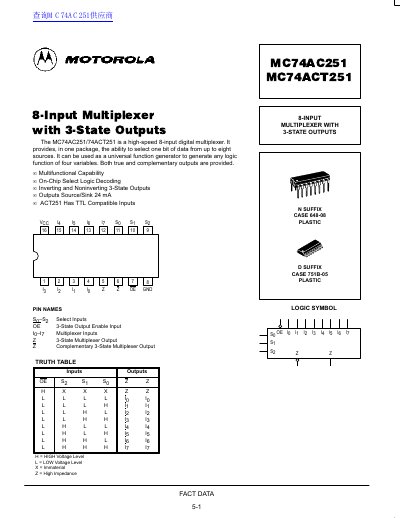

The MC74AC251/74ACT251 is a high-speed 8-input digital multiplexer. It provides, in one package, the ability to select one bit of data from up to eight sources. It can be used as a universal function generator to generate any logic function of four variables. Both true and complementary outputs are provided.
This document is a technical datasheet for the MC74AC251 and MC74ACT251 devices. These are high-speed 8-input digital multiplexers that provide both true and complementary 3-state outputs. The device functions as an on-chip switch controlled by three select inputs and allows for universal function generation of four variables.
| Number of Inputs | 8-input |
|---|---|
| Supply Voltage (ACT) | 4.5 to 5.5 V |
| Output Current Source/Sink | 24 mA |
| Package Type (AC) | Plastic DIP |
| Package Type (ACT) | Plastic SOIC |
Yes, the device can be used as a universal function generator to generate any logic function of four variables.
The device is rated for storage temperatures ranging from -65°C to +150°C.
