The MC74AC241/74ACT241 is an octal buffer and line driver designed to be employed as a memory address driver, clock driver and bus oriented transmitter or receiver which provides improved PC board density.

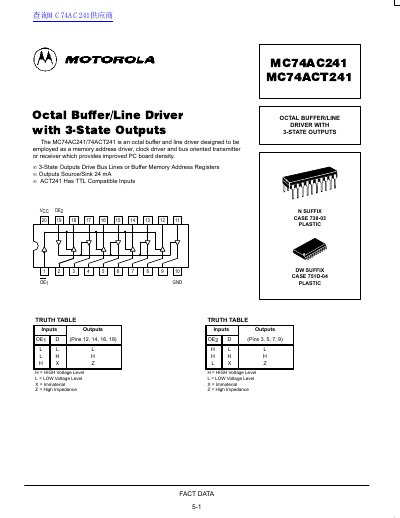

This document is a technical datasheet for the Motorola MC74AC241 and MC74ACT241 integrated circuits. These devices are octal buffers and line drivers designed to function as memory address drivers, clock drivers, or bus-oriented transmitters/receivers. The MC74ACT241 variant features TTL-compatible inputs.
| Outputs Source/Sink Current | 24 mA |
|---|---|
| Storage Temperature Range | -65 to +150 °C |
| Operating Ambient Temperature (74AC) | -40 to 85 °C |
The device can source or sink a maximum of 50 mA per pin.
The device operates within an ambient temperature range of -40 to +85 °C.
