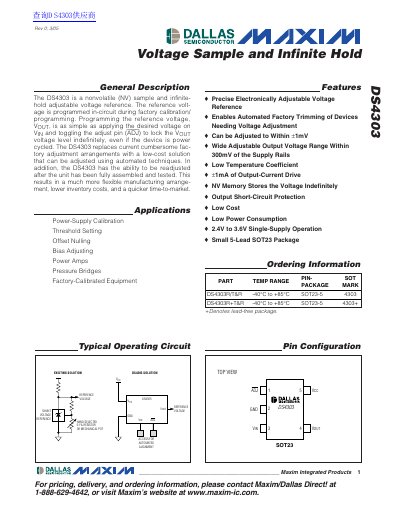

The DS4303 is a nonvolatile (NV) sample and infinite-hold adjustable voltage reference. The reference voltage is programmed in-circuit during factory calibration/ programming. Programming the reference voltage, VOUT, is as simple as applying the desired voltage on VIN and toggling the adjust pin (ADJ) to lock the VOUT voltage level indefinitely, even if the device is power cycled. The DS4303 replaces current cumbersome factory adjustment arrangements with a low-cost solution that can be adjusted using automated techniques. In addition, the DS4303 has the ability to be readjusted after the unit has been fully assembled and tested. This results in a much more flexible manufacturing arrangement, lower inventory costs, and a quicker time-to-market.
The DS4303 is a nonvolatile (NV) sample and infinite-hold adjustable voltage reference. The reference voltage is programmed in-circuit during factory calibration/programming by applying the desired voltage on Vin and toggling the adjust pin (ADJ). This allows the device to lock the Vout voltage level indefinitely, even if power is cycled.
| Supply Voltage Range | 2.4V to 3.6V |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Output Voltage Tracking Accuracy | +20 mV |
| Output Quantization | +1 mV |
| Supply Current | 1.6 mA typical |
The ADJ pin is used as an Adjust Control Input to toggle low for factory calibration.
Yes, the device has the ability to be readjusted after the unit has been fully assembled and tested.
The device supports up to 50,000 programming cycles at +70°C.
