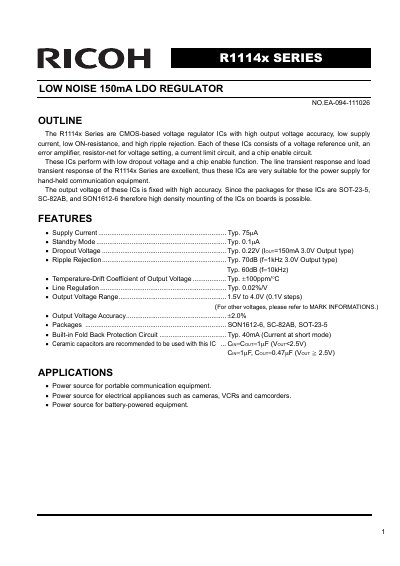

The R1114x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, low supply current, low ON-resistance, and high ripple rejection.
The R1114x Series are CMOS-based voltage regulator ICs featuring high output voltage accuracy, low supply current, and low ON-resistance. These ICs are designed with a chip enable function and excellent line and load transient responses, making them suitable for power supplies in hand-held communication equipment, cameras, and battery-powered devices. Available in SOT-23-5, SC-82AB, and SON1612-6 packages, they support output voltages from 1.5V to 4.0V.
| Supply Current (Typ) | 75uA |
|---|---|
| Standby Current (Typ) | 0.1pA |
| Dropout Voltage (Typ) | 0.22V |
| Ripple Rejection (Typ) | 700dB |
| Output Voltage Range | 1.5V to 4.0V |
| Operating Temperature Range | -40~85 °C |
| Output Current | 150 mA |
For output voltages less than 2.5V, use Cin=Cout=1 pF. For 2.5V output, use Cin=1 uF and Cout=0.47uF.
The typical short circuit current limit is 40mA.
The series is available in SOT-23-5, SC-82AB, and SON1612-6 packages.
