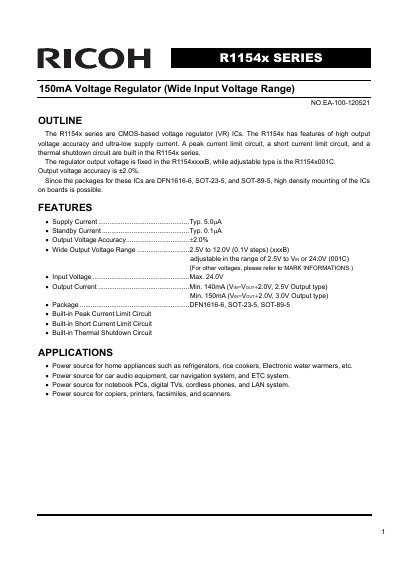

The R1154x series are CMOS-based voltage regulator (VR) ICs. The R1154x has features of high output voltage accuracy and ultra-low supply current. A peak current limit circuit, a short current limit circuit, and a thermal shutdown circuit are built in the R1154x series. The regulator output voltage is fixed in the R1154xxxxB, while adjustable type is the R1154x001C. Output voltage accuracy is ±2.0%. Since the packages for these ICs are DFN1616-6, SOT-23-5, and SOT-89-5, high density mounting of the ICs on boards is possible.
The Ricoh R1154x series are CMOS-based voltage regulator (VR) ICs designed for high output voltage accuracy and ultra-low supply current. The series includes fixed output types (R1154xxxxB) and adjustable output types (R1154x001C), available in DFN1616-6, SOT-23-5, and SOT-89-5 packages. Key features include built-in peak current limit, short current limit, and thermal shutdown circuits.
| Output Voltage Accuracy | +2.0% |
|---|---|
| Supply Current (Min) | 140mA |
| Operating Temperature | -40 to +105 °C |
| Short Current Limit | 45 mA |
| Thermal Shutdown Junction Temperature | 150 °C |
The available packages are DFN1616-6, SOT-23-5, and SOT-89-5.
The fixed output type supports a range of 2.5V to 12.0V in 0.1V steps.
The maximum output current is 250 mA.
