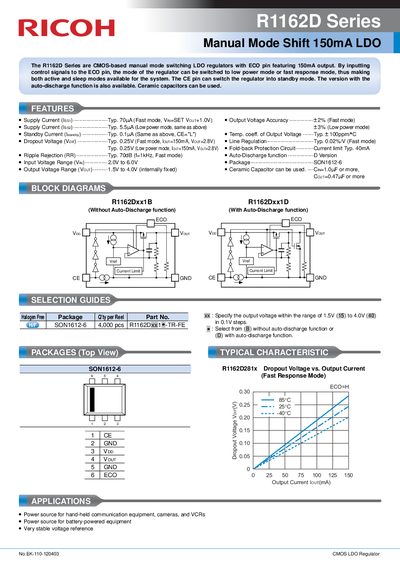

The R1162D Series are CMOS-based manual mode switching LDO regulators with ECO pin featuring 150mA output. By inputting control signals to the ECO pin, the mode of the regulator can be switched to low power mode or fast response mode, thus making both active and sleep modes available for the system. The CE pin can switch the regulator into standby mode. The version with the auto-discharge function is also available. Ceramic capacitors can be used.
The Ricoh R1162D Series are CMOS-based manual mode switching LDO regulators featuring a 150mA output. These regulators include an ECO pin that allows the mode to be switched between low power and fast response, enabling both active and sleep modes for the system. Additionally, the CE pin can switch the regulator into standby mode, and versions with an auto-discharge function are available. The series supports ceramic capacitors for input and output filtering.
| Output Current | 150mA |
|---|---|
| Output Voltage Accuracy (Fast mode) | + 2% |
| Output Voltage Accuracy (Low power mode) | + 3% |
| Temp. coeff. of Output Voltage | Typ. + 100ppm/°C |
| Dropout Voltage (Fast mode) | Typ. 0.25V |
| Ripple Rejection (Fast mode) | Typ. 70dB |
| Input Voltage Range | 2.0V to 6.0V |
| Output Voltage Range | 1.5V to 4.0V |
| Package Type | SON1612-6 |
The ECO pin allows the regulator mode to be switched to low power mode or fast response mode.
Yes, the CE pin can switch the regulator into standby mode.
Ceramic capacitors can be used for the input and output.
