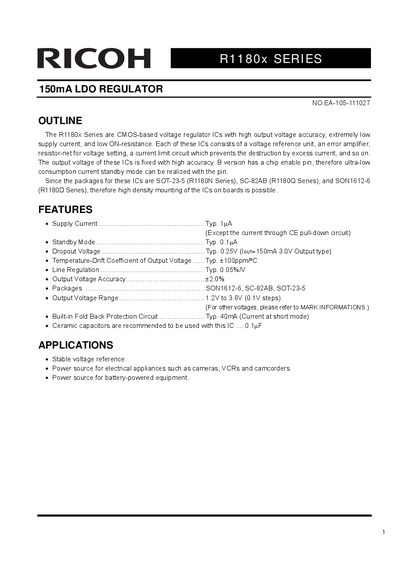

The R1180x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, extremely low supply current, and low ON-resistance. Each of these ICs consists of a voltage reference unit, an error amplifier, resistor-net for voltage setting, a current limit circuit which prevents the destruction by excess current, and so on. The output voltage of these ICs is fixed with high accuracy. B version has a chip enable pin, therefore ultra-low consumption current standby mode can be realized with the pin. Since the packages for these ICs are SOT-23-5 (R1180N Series), SC-82AB (R1180Q Series), and SON1612-6 (R1180D Series), therefore high density mounting of the ICs on boards is possible.
The R1180x Series are CMOS-based voltage regulator ICs designed with high output voltage accuracy, extremely low supply current, and low ON-resistance. The series includes three package options: SON1612-6 (R1180D), SC-82AB (R1180Q), and SOT-23-5 (R1180N). A B version with a chip enable pin is available for ultra-low consumption standby modes.
Key features include a typical supply current of 1A, a standby mode current as low as 0.1pA, and an output voltage accuracy of 2.0%. The ICs incorporate built-in fold-back protection circuits and are suitable for stable voltage reference applications in battery-powered equipment such as cameras and VCRs.
| Supply Current (Typ.) | 1A |
|---|---|
| Standby Mode Current (Typ.) | 0.1pA |
| Dropout Voltage (Typ.) | 0.25V |
| Output Voltage Accuracy | 2.0% |
| Temperature-Drift Coefficient | +/-100ppm/°C |
| Output Voltage Range | 1.2V to 3.6V |
| Short Current Limit | 40mA |
The series is available in SON1612-6, SC-82AB, and SOT-23-5 packages.
Ceramic capacitors of 0.1 uF are recommended to be used with this IC.
The operating temperature range is -40°C to 85°C.
