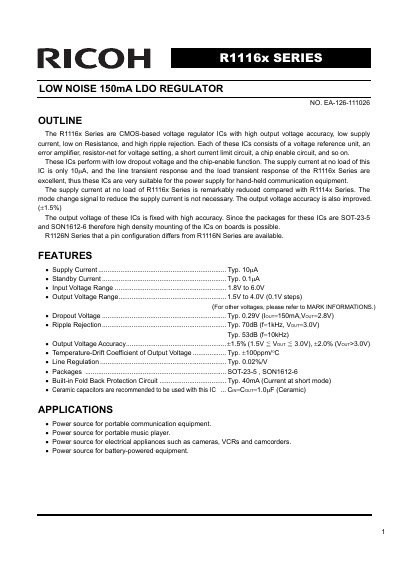

The R1116x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, low supply current, low on Resistance, and high ripple rejection.
The Ricoh R1116x Series are CMOS-based voltage regulator ICs designed for high output voltage accuracy, low supply current, and high ripple rejection. These ICs are particularly suitable for power supplies in hand-held communication equipment, portable music players, and battery-powered devices due to their low dropout voltage and excellent transient response.
| Supply Current (Typ) | 10uA |
|---|---|
| Input Voltage Range | 1.8V to 6.0V |
| Output Voltage Range | 1.5V to 4.0V |
| Dropout Voltage (Typ) | 0.29V |
| Ripple Rejection (Typ) | 70dB |
| Output Voltage Accuracy | +1.5% |
| Packages | SOT-23-5, SON1612-6 |
| Operating Temperature Range | -40 to 85 C |
The supply current at no load is typically 10uA.
The input voltage range is 1.8V to 6.0V, and the output voltage range is 1.5V to 4.0V.
Ceramic capacitors with values of 1.0uF are recommended for both input and output.
