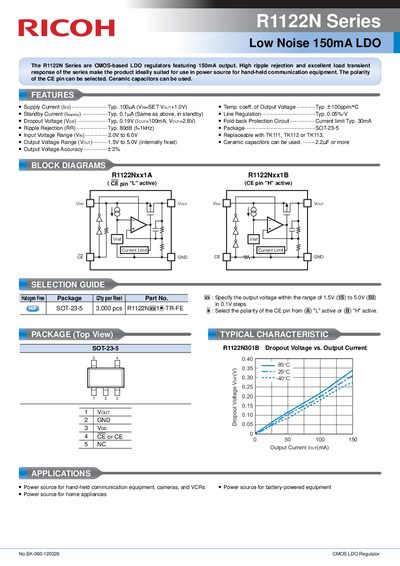

The R1122N Series are CMOS-based LDO regulators featuring 150mA output. High ripple rejection and excellent load transient response of the series make the product ideally suited for use in power source for hand-held communication equipment. The polarity of the CE pin can be selected. Ceramic capacitors can be used.
The R1122N Series are CMOS-based Low Dropout (LDO) regulators featuring a 150mA output current. The series is designed with high ripple rejection and excellent load transient response, making it ideally suited for use as a power source in hand-held communication equipment, cameras, VCRs, and other battery-powered devices.
| Output Current | 150mA |
|---|---|
| Supply Current (Iss) | Typ. 100uA |
| Standby Current (Istandby) | Typ. 0.1nA |
| Line Regulation | Typ. 0.05%/V |
| Dropout Voltage (Voir) | Typ. 0.19V |
| Current Limit | Typ. 30mA |
| Ripple Rejection (RR) | Typ. 80dB |
| Input Voltage Range (Vin) | .OV to 6.0V |
| Output Voltage Range (Vou) | .5V to 5.0V |
| Package Type | SOT-23-5 |
The series features a 150mA output.
The typical dropout voltage is 0.19V under those conditions.
The input voltage range is from 0V to 6.0V.
