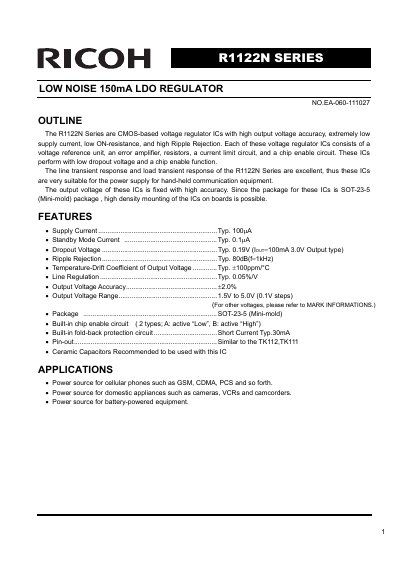

The R1122N Series are CMOS-based voltage regulator ICs with high output voltage accuracy, extremely low supply current, low ON-resistance, and high Ripple Rejection. Each of these voltage regulator ICs consists of a voltage reference unit, an error amplifier, resistors, a current limit circuit, and a chip enable circuit. These ICs perform with low dropout voltage and a chip enable function. The line transient response and load transient response of the R1122N Series are excellent, thus these ICs are very suitable for the power supply for hand-held communication equipment. The output voltage of these ICs is fixed with high accuracy. Since the package for these ICs is SOT-23-5 (Mini-mold) package , high density mounting of the ICs on boards is possible.
The R1122N Series are CMOS-based voltage regulator ICs featuring high output voltage accuracy, extremely low supply current, low ON-resistance, and high ripple rejection. These ICs include a built-in chip enable circuit and fold-back protection, making them suitable for power supplies in hand-held communication equipment.
| Supply Current (Typ) | 100uA |
|---|---|
| Standby Mode Current (Typ) | 0.1pA |
| Dropout Voltage (Typ, Vout=3.0V) | 0.19V |
| Ripple Rejection (Typ) | 80dB |
| Output Voltage Accuracy | ±2.0% |
| Output Voltage Range | 1.5V to 5.0V |
| Package Type | SOT-23-5 |
| Operating Temperature Range | -40 ~ 85 °C |
The typical supply current is 100uA.
Yes, it includes a built-in chip enable circuit with two types: active 'Low' and active 'High'.
The ICs use an SOT-23-5 (Mini-mold) package.
