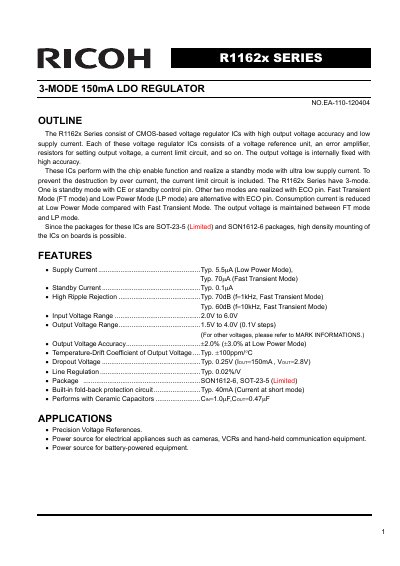

Ricoh R1162x Series 3-Mode 150mA LDO Regulator Datasheet

The series products are CMOS-based voltage regulator ICs with high output voltage accuracy and low supply current

Brand: Ricoh
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 27
File format: PDF
File size: 791 KB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: 48AA74D3AEC0E2A68D27158C82BFBCAB
PDF: Ricoh R1162x Series 3-Mode 150mA LDO Regulator Datasheet PDF

About this manual

The R1162x Series consists of CMOS-based voltage regulator ICs designed for high output voltage accuracy and low supply current. These devices include a chip enable function for ultra-low standby current and a current limit circuit to prevent destruction by overcurrent. The series offers three operating modes: standby mode controlled by the CE or standby control pin, and two modes selectable via the ECO pin: Fast Transient Mode (FT) and Low Power Mode (LP).

What's inside

Outline
Features
Applications
Selection Guide
Pin Configurations
Absolute Maximum Ratings
Electrical Characteristics
Typical Application
Typical Characteristics
ESR vs. Output Current

Specifications

Supply Current (Low Power Mode)	Typ. 5.5uA
Supply Current (Fast Transient Mode)	Typ. 70uA
Standby Current	Typ. 0.1pA
High Ripple Rejection (FT Mode)	Typ. 70dB
Input Voltage Range	2.0V to 6.0V
Output Voltage Range	1.5V to 4.0V
Output Voltage Accuracy	2.0%
Dropout Voltage	Typ. 0.25V
Short Current Limit	Typ. 40mA
Operating Temperature Range	-40 ~ 85 °C

Frequently asked questions

What are the selectable operating modes for the R1162x Series?

The series has three modes: Standby mode (controlled by CE or standby pin), Fast Transient Mode (FT), and Low Power Mode (LP).

Which packages are available for the R1162x Series?

The ICs are available in SOT-23-5 and SON1612-6 packages.

What is the recommended output capacitor type?

The device performs well with ceramic capacitors, specifically recommending Cin=1.0uF and Cout=0.47uF.
