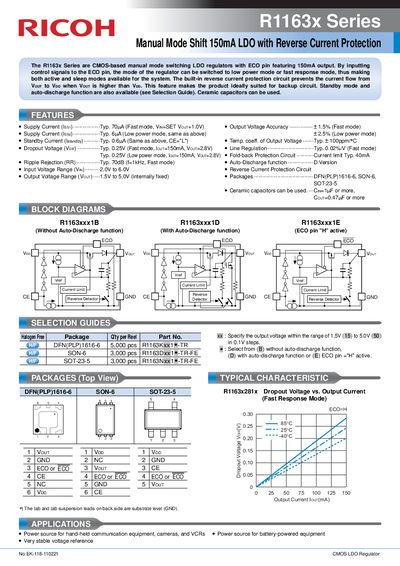

The R1163x Series are CMOS-based manual mode switching LDO regulators with ECO pin featuring 150mA output. By inputting control signals to the ECO pin, the mode of the regulator can be switched to low power mode or fast response mode, thus making both active and sleep modes available for the system. The built-in reverse current protection circuit prevents the current flow from VOUT to VDD when VOUT is higher than VDD. This feature makes the product ideally suited for backup circuit. Standby mode and auto-discharge function are also available (see Selection Guide). Ceramic capacitors can be used.
The R1163x Series are CMOS-based manual mode switching LDO regulators with an ECO pin featuring 150mA output. By inputting control signals to the ECO pin, the mode of the regulator can be switched to low power mode or fast response mode, thus making both active and sleep modes available for the system. The built-in reverse current protection circuit prevents the current flow from Vout to Von when Vout is higher than Von, making the product ideally suited for backup circuits.
| Output Current | 150mA |
|---|---|
| Supply Current (Fast mode) | Typ. 70uA |
| Supply Current (Low power mode) | Typ. 6uA |
| Output Voltage Accuracy (Fast mode) | +/- 1.5% |
| Output Voltage Accuracy (Low power mode) | +/- 2.5% |
| Dropout Voltage (Fast mode) | Typ. 0.25V |
| Output Voltage Range | 1.5V to 5.0V |
| Packages | DFN(PLP)1616-6, SON-6, SOT-23-5 |
The ECO pin allows the mode of the regulator to be switched to low power mode or fast response mode.
Yes, the built-in reverse current protection circuit prevents current flow from Vout to Von when Vout is higher than Von.
Yes, ceramic capacitors can be used for Cin and Cout.
