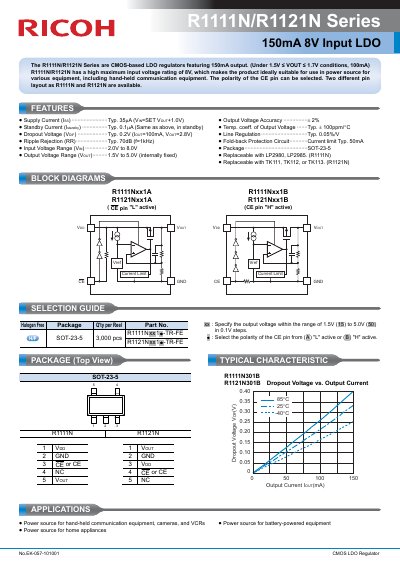

The R1111N/R1121N Series are CMOS-based LDO regulators featuring 150mA output. They have a high maximum input voltage rating of 8V, making them ideally suitable for use in power source for various equipment, including hand-held communication equipment.
The R1111N/R1121N Series are CMOS-based LDO regulators featuring a 150mA output current (reduced to 100mA under specific conditions). These devices offer a high maximum input voltage rating of 8V, making them suitable for use as power sources in hand-held communication equipment, cameras, VCRs, and other battery-powered applications. The polarity of the CE pin can be selected via different package layouts.
| Output Current | 150mA (100mA under specific conditions) |
|---|---|
| Maximum Input Voltage | 8V |
| Supply Current (Typical) | 35uA |
| Output Voltage Accuracy | +/- 2% |
| Standby Current (Typical) | 0.1nA |
| Dropout Voltage (Typical) | 0.2V |
| Input Voltage Range | -2.0V to 8.0V |
| Output Voltage Range | 1.5V to 5.0V |
| Package Type | SOT-23-5 |
The product has a high maximum input voltage rating of 8V.
