BCW32LT1 is a general purpose transistor produced by Semiconductor Components Industries, LLC. The maximum collector-emitter voltage is 32Vdc, the maximum collector-base voltage is 32Vdc, the maximum emitter-base voltage is 5.0Vdc, and the maximum collector current is 100mAdc

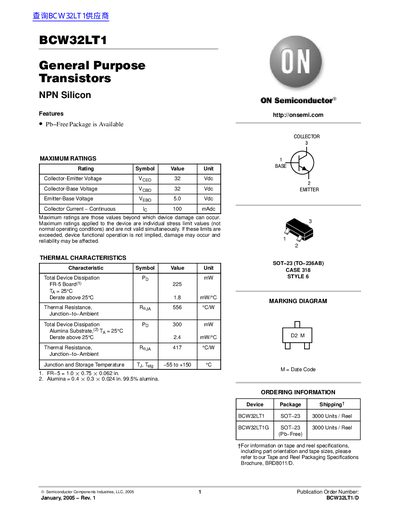

The document is a technical datasheet for the BCW32LT1, a general-purpose NPN silicon transistor. It details maximum ratings such as a collector-emitter voltage of 32V and a continuous collector current of 100mA. The device is available in a Pb-free SOT-23 package.
| Collector-Emitter Voltage | 32 V |
|---|---|
| Collector Current - Continuous | 100 mA |
| Junction and Storage Temperature | -55 to +150 °C |
| DC Current Gain | 200 - 450 |
| Collector-Emitter Saturation Voltage | 0.25 V |
| Package Type | SOT-23 (TO-236AB) |
The maximum collector-emitter voltage is 32 V.
The continuous collector current rating is 100 mA.
Yes, a Pb-free package is available for this device.
