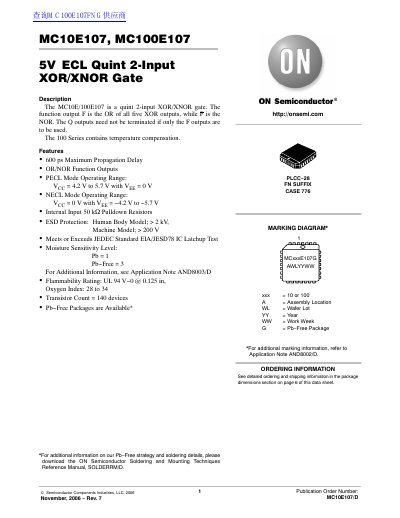

The MC10E107/D is a Quint 2-Input XOR/XNOR Gate from ON Semiconductor with features such as 600 ps Maximum Propagation Delay and OR/NOR Function Outputs.
This document is a technical datasheet for the MC10E107 and MC100E107 integrated circuits, which are quint 2-input XOR/XNOR gates. The devices feature OR/NOR function outputs and operate in both PECL (Positive Emitter-Coupled Logic) and NECL modes.
| Propagation Delay (Max) | 600 ps |
|---|---|
| Storage Temperature Range | -65 to +150 °C |
| Output Current (Continuous) | 50 mA |
| Maximum Toggle Frequency | 700 MHz |
| Transistor Count | 140 devices |
The output F is the OR of all five XOR outputs, while F is the NOR.
No, the Q outputs do not need to be terminated in that scenario.
The maximum propagation delay is 600 ps.
