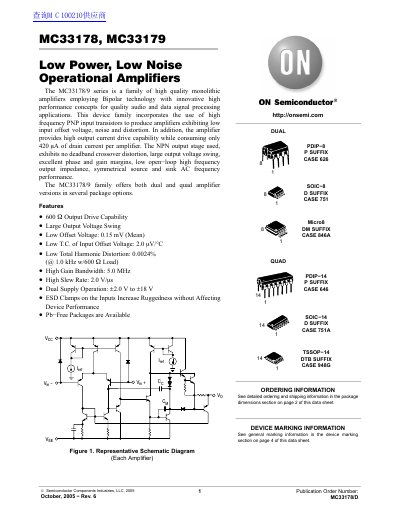

ON Semiconductor MC33178/MC33179 Low Power Operational Amplifiers Datasheet

This is an English document introducing the MC33178/9 low power low noise operational amplifiers

Brand: ON Semiconductor
Category: amplifier
Document type: Datasheet
Language: English
Pages: 16
File format: PDF
File size: 216 KB
Published: 09 July, 2012
Updated: 01 October, 2023
Models: MC33178, MC33179
MD5 checksum: 532EBAFAEFB3217636F063B9D3C314B2
PDF: ON Semiconductor MC33178/MC33179 Low Power Operational Amplifiers Datasheet PDF

About this manual

The MC33178/9 series is a family of high quality monolithic amplifiers employing Bipolar technology with innovative high performance concepts for quality audio and data signal processing applications. The devices incorporate the use of high frequency PNP input transistors to produce amplifiers exhibiting low input offset voltage, noise and distortion.

What's inside

Features
Ordering Information
Maximum Ratings
Marking Diagrams
Pin Connections
DC Electrical Characteristics
AC Electrical Characteristics

Specifications

Output Drive Capability	600 mA
Input Offset Voltage (Typ)	0.15 mV
Total Harmonic Distortion	0.0024%
High Gain Bandwidth	5.0 MHz
High Slew Rate	2.0 V/us
Supply Voltage Range	+/-2.0 V to +18 V

Frequently asked questions

What is the maximum supply voltage range for these amplifiers?

The device supports dual supply operation from -2.0 V to +18 V.

What is the typical input offset voltage at room temperature?

The typical input offset voltage is 0.15 mV when the temperature is 25°C.

Download PDF (216 KB)
