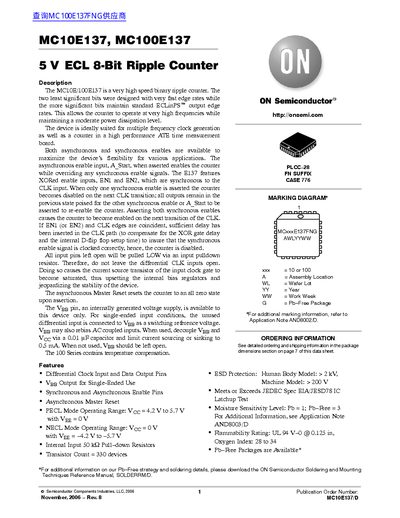

The MC10E137/D is a 5 V ECL 8-bit oscillator/counter that can be used as a counter or oscillator. It has two asynchronous enable inputs and two synchronous enable inputs for maximum flexibility.
The MC10E137 and MC100E137 are very high speed 8-bit binary ripple counters designed for multiple frequency clock generation and high performance ATE time measurement boards. The device features two least significant bits with very fast edge rates while more significant bits maintain standard ECLinPS output edge rates, allowing operation at high frequencies with moderate power dissipation.
The counter includes both asynchronous and synchronous enable inputs to maximize flexibility for various applications. It supports PECL and NECL operating modes with internal input pull-down resistors and an internally generated Vpp voltage supply available for single-ended use or AC coupling rebiasing.
| Product Type | 8-Bit Ripple Counter |
|---|---|
| Package Type | PLCC-28 |
| Operating Temperature Range (Ta) | 0 to +85 °C |
| Storage Temperature Range (Tstg) | -65 to +150 °C |
| Power Supply Current (PECL Mode, Typ) | 145 mA |
| Output Current Continuous | 50 mA |
The asynchronous Master Reset resets the counter to an all zero state upon assertion.
The PECL mode power supply voltage must be between 4.2 V and 5.7 V.
