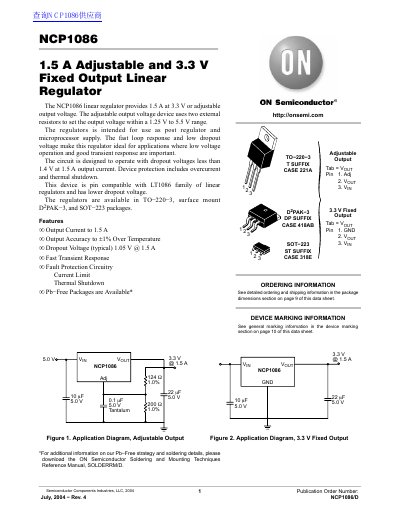

NCP1086 1.5 A Adjustable and 3.3 V Fixed Output Linear Regulator
The NCP1086 is a linear regulator designed to provide up to 1.5 A at a 3.3 V fixed output or an adjustable output voltage ranging from 1.25 V to 5.5 V using two external resistors. It features fast loop response and low dropout voltage, making it suitable for use as a post-regulator or microprocessor supply.
| Output Current | 1.5 A |
|---|---|
| Supply Voltage, Vcc | 7.0 V |
| Operating Temperature Range | -40 to +70 °C |
| Junction Temperature | 150 °C |
| Dropout Voltage (Typical) | 1.05 V @ 1.5A |
The device provides an output current up to 1.5 A.
The typical dropout voltage is 1.05 V when the output current is 1.5 A.
The device is available in TO-220-3, D2PAK-3, and SOT-223 packages.
