The MC10E/100E157 5 V�ECL Quad 2:1 Multiplexer is an IC product from ON Semiconductor company with four 2:1 multiplexers with differential outputs.

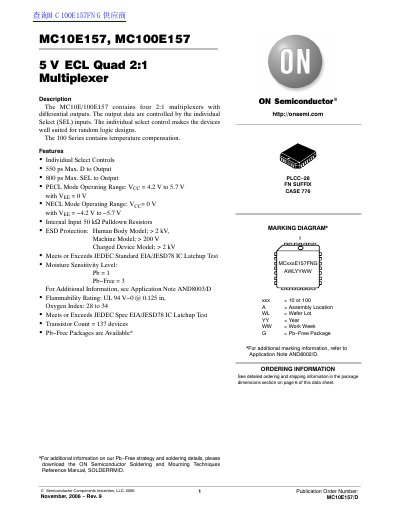

The document describes the MC10E157 and MC100E157, which are 5 V ECL Quad 2:1 Multiplexers containing four multiplexers with differential outputs. The output data are controlled by individual Select (SEL) inputs, making them suitable for random logic designs. The 100 Series variant includes temperature compensation.
| Product Type | 5 V ECL Quad 2:1 Multiplexer |
|---|---|
| Max. D to Output Delay | 550 ps |
| Max. SEL to Output Delay | 800 ps |
| Operating Temperature Range (Ta) | -65 to +85 °C |
| Storage Temperature Range (Tstg) | -65 to +150 °C |
| Output Current (Continuous) | 50 mA |
The device operates within a temperature range of 0 to +85 °C.
The maximum continuous output current is 50 mA.
The PLCC-28 package ships 37 units per rail.
