This document describes the features and characteristics of the BFQ161 NPN video transistor, including low output capacitance, high gain bandwidth, high current applicability, good thermal stability, and gold metallization for excellent reliability. The transistor is suitable for use as a pre-stage driver in high resolution color graphics monitors.

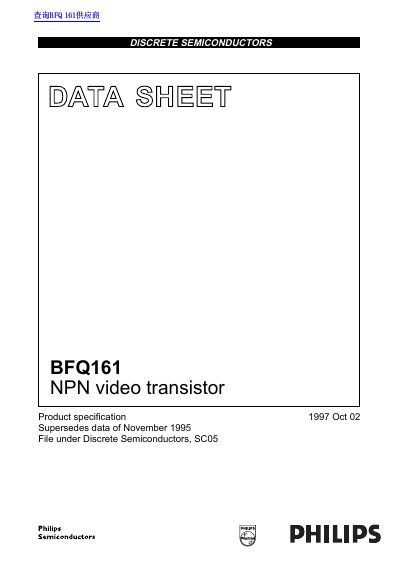

The Philips BFQ161 is an NPN video transistor designed for use as a pre-stage driver in high-resolution colour graphics monitors. It is available in a SOT54 plastic package or a TO-92 plastic package and features low output capacitance and high gain bandwidth. The device includes gold metallization to ensure excellent reliability and good thermal stability.
| Junction temperature | 150 °C |
|---|
It is used as a pre-stage driver in high resolution colour graphics monitors.
The maximum DC collector current is 500 mA.
The total power dissipation is 1 W when the temperature is below 75 °C.
The maximum junction temperature is 150 °C.
