BFQ222 is a NPN video transistor produced by Philips company, which is mainly used in cascode output and buffer stages in high resolution color monitors.

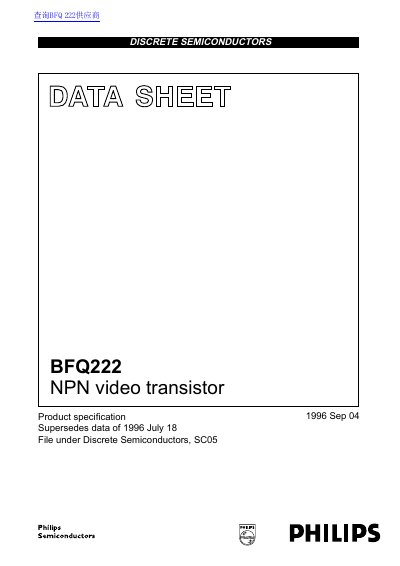

This document is a product specification datasheet for the Philips BFQ222, an NPN silicon video transistor. It is primarily intended for use in cascode output and buffer stages in high-resolution colour monitors. The device is encapsulated in a 3-lead plastic SOT32 package.
| Collector-base voltage (open emitter) | 100 V |
|---|---|
| Collector current (DC) | 100 mA |
| Total power dissipation | 5 W |
| Transition frequency | 1 GHz |
| Feedback capacitance | 1.7 pF |
| Junction temperature | 175 °C |
| Package type | SOT32 |
It is primarily intended for cascode output and buffer stages in high-resolution colour monitors.
The device is encapsulated in a 3-lead plastic SOT32 package.
The maximum junction temperature is 175 °C.
