BFQ162 is an NPN video transistor produced by Philips. It features low output capacitance, good thermal stability and excellent reliability. It is mainly used as a pre-stage driver in high-resolution color graphics monitors.

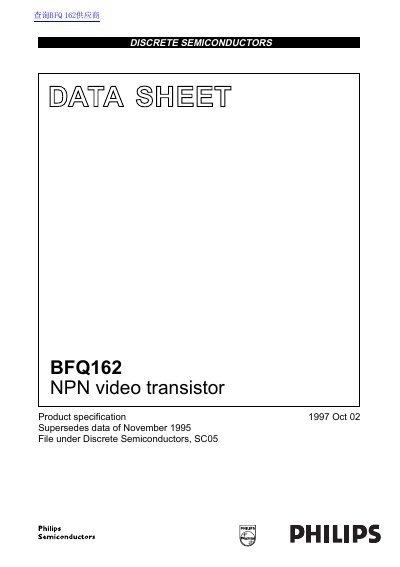

The document is a technical data sheet for the Philips BFQ162, an NPN video transistor packaged in SOT32 (TO-126). It features low output capacitance and gold metallization to ensure excellent reliability. The device is specifically intended for use as a pre-stage driver in high-resolution colour graphics monitors.
| Collector-emitter voltage | 19 V |
|---|---|
| Collector current (DC) | 500 mA |
| Total power dissipation | 3 W |
| DC current gain (typical) | 60 |
| Transition frequency (typical) | 1 GHz |
| Collector-base capacitance (typical) | 4.2 pF |
| Collector capacitance (typical) | 5.8 pF |
The transistor is available in an SOT32 (TO-126) plastic single-ended leaded package.
The device can dissipate up to 3 W when the temperature at the soldering point of the collector pin is below 115 °C.
The maximum collector-base voltage is 20 V, while the maximum collector-emitter voltage is 19 V.
The typical DC current gain ranges from 50 to 60 when the collector current is 300 mA and the collector-emitter voltage is 5 V.
