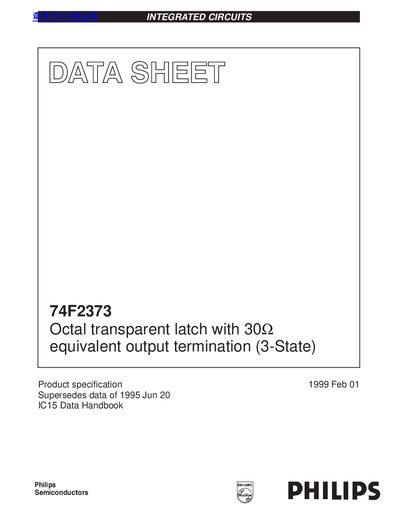

74F2373 is an octal transparent latch with 30 Ohm equivalent output termination (3-State) for driving DRAM.
The Philips 74F2373 is an octal transparent latch coupled to eight 3-State output devices. It features a 30 Ohm series termination on the outputs to reduce over/undershoot, making it ideal for driving DRAM, MOS memories, or MOS microprocessors. The device includes independent register and 3-State buffer operation controlled by enable (E) and output enable (OE) inputs.
| Propagation Delay (Typical) | 4.5ns |
|---|---|
| Supply Current (Total) | 35mA |
| Operating Temperature Range | 0°C to +70°C |
| Output Termination | 30 Ohm |
The device is ideal for driving DRAM, MOS memories, or MOS microprocessors due to its 30 Ohm series termination.
The active low output enable (OE) controls all eight 3-State buffers independently of the latch operation.
