The 74F151A is an 8-input multiplexer with high speed, on-chip decoding, multifunctional capability, and complementary outputs. It can provide the ability to select from eight sources of data or control information in one package. The device can provide any logic function of four variables and the negation with correct manipulation.

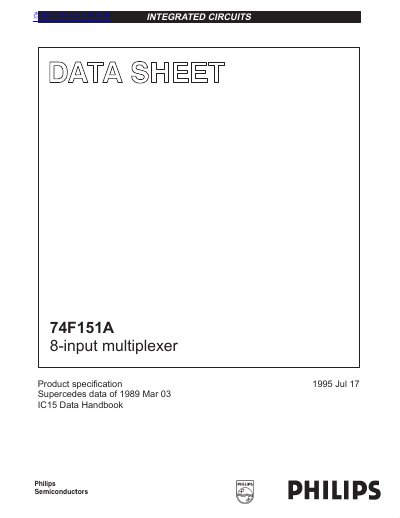

This document is a product specification datasheet for the 74F151A integrated circuit manufactured by Philips Semiconductors. The device functions as an 8-to-1 multiplexer with on-chip decoding, providing both true (Y) and complementary (¥) outputs controlled by three select inputs.
| Propagation Delay (Typical) | 4.5ns |
|---|---|
| Supply Current (Total) | 17mA |
| Operating Temperature Range | 0°C to +70°C |
| Supply Voltage (Nominal) | 5.0V |
| Package Type | 16-pin plastic DIP or SO |
The device allows selection from eight sources of data or control information.
Yes, it provides both true (Y) and complementary (¥) outputs.
