74F805/74F1805 is a Hex 2-input NOR driver launched by Philips Semiconductors. The product has high capacitive drive capability and can be configured in Corner VCC and GND or Center VCC and GND. The typical propagation delay is 2.3ns.

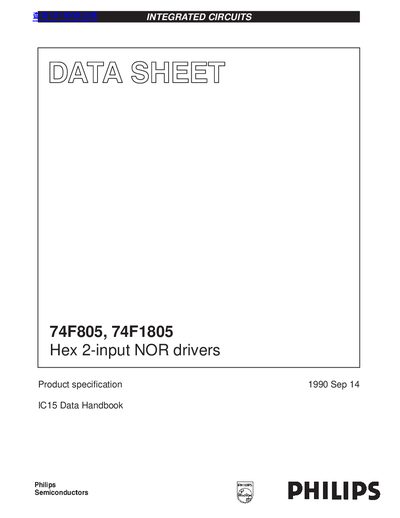

This document is a product specification datasheet for the Philips 74F805 and 74F1805 integrated circuits, which are Hex 2-input NOR drivers. The devices offer a choice of configuration with center or corner Vcc and GND pins and feature a typical propagation delay of 2.3ns.
| Typical propagation delay | 2.3ns |
|---|
The 74F805 has corner Vcc and GND pins, while the 74F1805 has center Vcc and GND pins.
The typical propagation delay is 2.3ns.
The supply voltage must not exceed +7.0 V, and the operating temperature range is 0 to +70 °C.
The device can source or sink up to 48 mA at the outputs.
