The 74F153 is a dual 4-input multiplexer that can select 2 bits of data from up to four sources selected by common Select inputs (S0, S1). The two 4-input multiplexer circuits have individual active-Low Enables (Ea, Eb) which can be used to strobe the outputs independently. Outputs (Ya, Yb) are forced Low when the corresponding Enables (Ea, Eb) are High. The 74F153 is the logic implementation of a 2-pole, 4-position switch where the switch is determined by the logic levels supplied to the common select inputs.

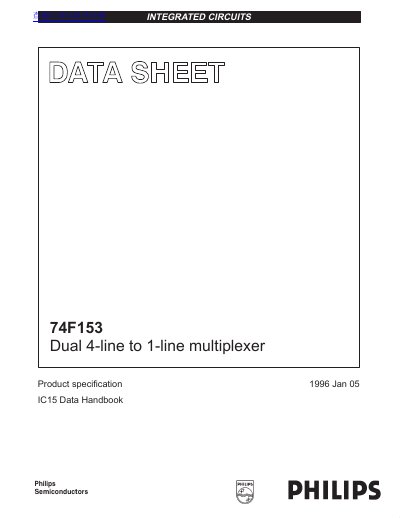

This document is a product specification datasheet for the Philips 74F153, a dual 4-input multiplexer integrated circuit. The device allows the selection of 2 bits of data from up to four sources using common select inputs. It features two independent sections, each with an active-low enable input that can be used to strobe the outputs independently. When an enable input is high, the corresponding output is forced low.
| Propagation Delay (Total) | 7.0ns |
|---|---|
| Supply Current (Total) | 12mA |
| Operating Temperature Range | 0°C to +70°C |
| High-level Input Voltage | 2.0V |
| Low-level Output Current | 20 mA |
| Package Type | 16-pin plastic DIP |
The two multiplexer circuits have individual active-Low Enables (Ea, Eb) which can be used to strobe the outputs independently.
Outputs are forced Low when the corresponding Enables are High.
Yes, the 74F153 is the logic implementation of a 2-pole, 4-position switch, and users should see 74F253 for the 3-State version.
