This document describes the features and characteristics of the 74F832 and 74F1832 Hex 2-input OR drivers, including high capacitive drive capability, configuration options, typical propagation delay, superior ground noise characteristics, and increased source and sink current.

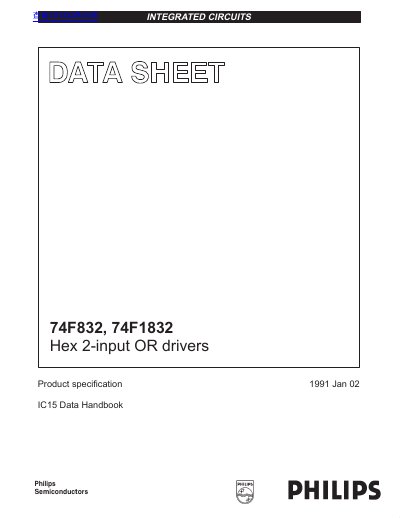

This document is a product specification datasheet for the Philips 74F832 and 74F1832, which are Hex 2-input OR drivers. The devices offer high capacitive drive capability with a typical propagation delay of 3.5ns and superior ground noise characteristics implemented via output edge rate control.
| Typical propagation delay | 3.5ns |
|---|---|
| Source and sink current | 64mA |
| Supply voltage range | 0.5 to +7.0 V |
The typical propagation delay is 3.5ns.
The recommended supply voltage range is 4.5V to 5.5V.
