This document describes the features of the 74F808 and 74F1808 Hex 2-input AND drivers. These drivers have high capacitive drive capability, a typical propagation delay of 4.0ns, superior ground noise characteristics, and increased source and sink current.

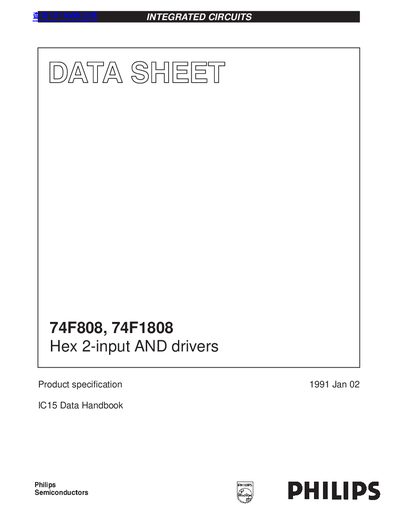

This document is a product specification datasheet for the Philips 74F808 and 74F1808 Hex 2-input AND drivers. The chips offer high capacitive drive capability with a typical propagation delay of 4.0ns and superior ground noise characteristics. The 74F1808 variant features a center Vcc and GND configuration, while the 74F808 uses corner Vcc and GND.
| Typical propagation delay | 4.0ns |
|---|---|
| Source and sink current | 64mA |
| Operating temperature range | 0°C to +70°C |
The 74F808 has corner Vcc and GND, while the 74F1808 has center Vcc and GND.
The absolute maximum rating for input voltage is +7.0V.
