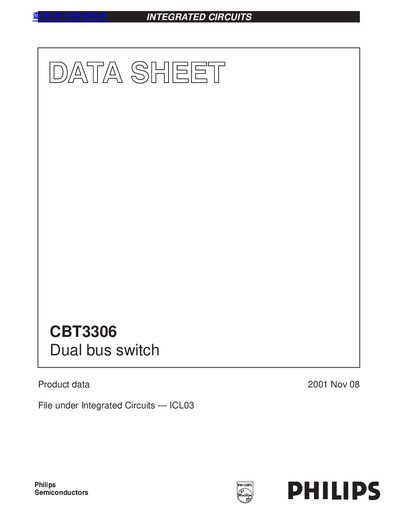

The CBT3306 is a dual bus switch produced by Philips, which has features such as 5Ω switch connection, TTL-compatible input levels, plastic small outline (SO) and thin shrink small outline (TSSOP) package options, over 100mA latch-up protection and over 2000V HBM ESD protection.
The document describes the Philips CBT3306, an integrated circuit designed as a dual FET bus switch. It features independent line switches between two ports with TTL-compatible input levels and includes latch-up protection exceeding 100 mA per JESD78 standards.
The datasheet provides comprehensive technical data including absolute maximum ratings, recommended operating conditions from -40 to +85 °C, DC electrical characteristics such as on-resistance and propagation delay, AC waveforms, and mechanical dimensions for SO-8 and TSSOP packages.
| Operating Temperature Range | -40 to +85 °C |
|---|---|
| Latch-up Protection | > 100 mA per JESD78 |
| ESD Protection (HBM) | > 2000 V |
The device operates from -40 to +85 °C.
