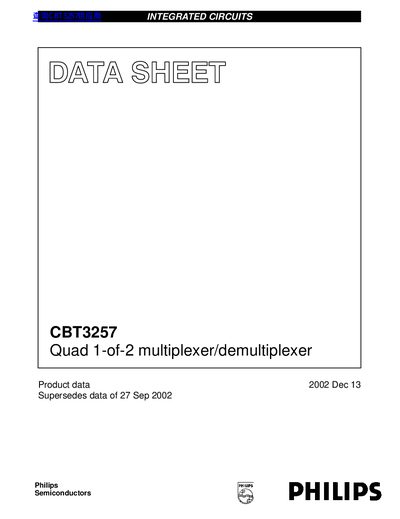

Philips CBT3257 Quad 1-of-2 Multiplexer/Demultiplexer Product Data Sheet

The CBT3257 is a quad 1-of-2 high-speed TTL-compatible multiplexer/demultiplexer

Brand: Philips
Category: INTEGRATED CIRCUITS
Document type: Datasheet
Language: English
Pages: 11
File format: PDF
File size: 97 KB
Published: 06 July, 2012
Updated: 30 September, 2023
MD5 checksum: EDF6390E6FDD782C04F4A39E8E20317A
PDF: Philips CBT3257 Quad 1-of-2 Multiplexer/Demultiplexer Product Data Sheet PDF

About this manual

The Philips CBT3257 is a quad 1-of-2 high-speed TTL-compatible multiplexer/demultiplexer designed to connect inputs to outputs without adding propagation delay or generating ground bounce noise. It features five Q switch connections between two ports and includes latch-up protection exceeding 500 mA per JESD78.

What's inside

Features
Description
Pin Configuration
Logic Diagram
Function Table
Absolute Maximum Ratings
Recommended Operating Conditions
DC Electrical Characteristics
AC Characteristics
Package Dimensions

Specifications

Temperature Range (Characterized)	-40 to +85 °C
Supply Voltage (Recommended)	4.5 V to 5.5 V
Storage Temperature Range	-65 to +150 °C

Frequently asked questions

What is the maximum continuous current the CBT3257 can handle per channel?

The device supports a continuous channel current of up to 128 mA.

What is the maximum operating temperature range for this multiplexer/demultiplexer?

The CBT3257 is characterized for operation from -40 to +85 °C.
