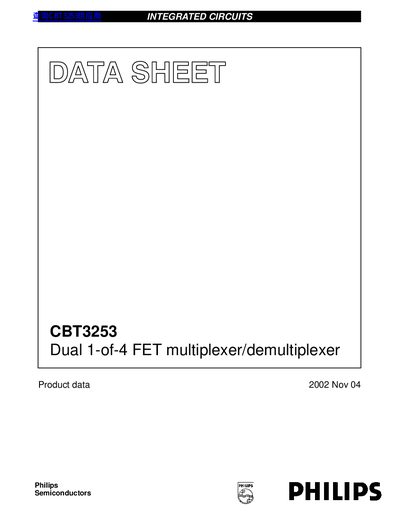

This datasheet details the CBT3253 dual 1-of-4 high-speed TTL-compatible FET multiplexer/demultiplexer's features, including 5 Ω switch connection, TTL-compatible input levels, minimal propagation delay, ESD protection, and latch-up testing
The Philips CBT3253 is a dual 1-of-4 high-speed TTL-compatible FET multiplexer/demultiplexer designed for switching applications. It features a low on-resistance that allows inputs to be connected to outputs without adding propagation delay, ensuring efficient signal transmission.
The device is characterized for operation from -40 to +85°C and includes ESD protection exceeding 2000 V HBM. It is available in various 16-pin plastic packages, including SO, SSOP, TSSOP, and QSOP, with ordering codes such as CBT3253D and CBT3253PW.
| Input Voltage (High) | 2 V |
|---|---|
| Input Voltage (Low) | 0.8 V |
| Continuous Channel Current | 128 mA |
| On-resistance (typical) | 10 to 15 ohms |
| ESD Protection (HBM) | 2000 V |
It is a dual 1-of-4 high-speed TTL-compatible FET multiplexer/demultiplexer.
The device has 16 pins.
