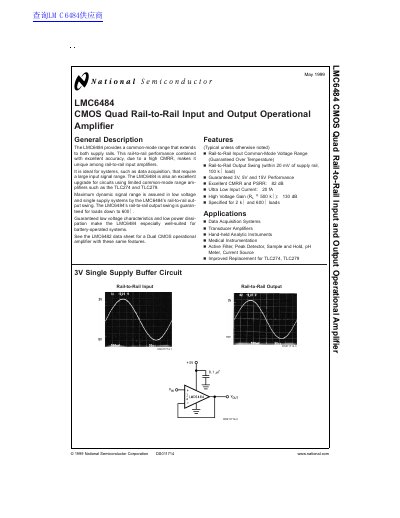

LMC6484 is a CMOS quad rail-to-rail input and output operational amplifier. It provides a wide common-mode range and high accuracy, making it ideal for data acquisition systems that require a large input signal range. The LMC6484 is also a great upgrade option for amplifiers with limited common-mode range, such as the TLC274 and TLC279. It has guaranteed low voltage characteristics and low power dissipation, making it well-suited for battery-operated systems.
The LMC6484 is a CMOS quad operational amplifier designed for systems requiring a large input signal range, such as data acquisition and medical instrumentation. It features a common-mode range that extends to both supply rails, ensuring rail-to-rail performance combined with high accuracy due to a high CMRR. This makes it an ideal upgrade for circuits using limited common-mode range amplifiers like the TLC274 and TLC279.
| Input Offset Voltage (Typical) | 0.1 mV |
|---|---|
| Input Current | 20 fA |
| Common Mode Rejection Ratio (CMRR) | 82 dB |
| Supply Voltage Range | 3.0V to 15.5V |
| Supply Current (All Four Amplifiers, 5V) | 2.8 mA max |
The typical input offset voltage is 0.1 mV.
The device is specified for 3V, 5V, and 15V performance.
The LMC6484 has an ultra-low input current of 20 fA.
Yes, its guaranteed low voltage characteristics and low power dissipation make it well-suited for battery-operated systems.
